PNK DP 090C double stage vane vacuum pumps
Excellent and reliable double - stage rotary vane vacuum pump
Motor power(50Hz): 3.7Kw
Pumping speed (50/60Hz): 90m³/h/108m³/h
Limit vacuum: 5.0×10-3mbar
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK DP-C series double stage rotary vane pump Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK DP 090C |
|---|---|---|---|
| Pumping speed | m3/h | 50 Hz | 90 |
| 60 Hz | 108 | ||
| Limit partial pressure | mbar | 50 Hz | 7.0×10-4 |
| Limit total pressure | mbar | 50 Hz | 5.0×10-3 |
| Open limit total pressure | mbar | 50 Hz | 1.0×10-2 |
| Water vapor permitted tolerance | mbar | 50 Hz | 30 |
| Nomimal size | DN（mm） | 50 Hz | KF40 |
| Voltage | V | 50 Hz | 220-240/380-420 |
| 60 Hz | 220-280/380-460 | ||
| Power | Kw | 50 Hz | 3.7 |
| Current | A | 50 Hz | 13.4/7.70 |
| 60 Hz | 16.1/9.24 | ||
| Speed | r/min | 50 Hz | 1440 |
| 60 Hz | 1700/1720 | ||
| Noise | (ENISO2151) | dB(A) | 70 |
| Oil filling quantity | L | 2.5/4.2 | |
| Weight | kg | 104 |

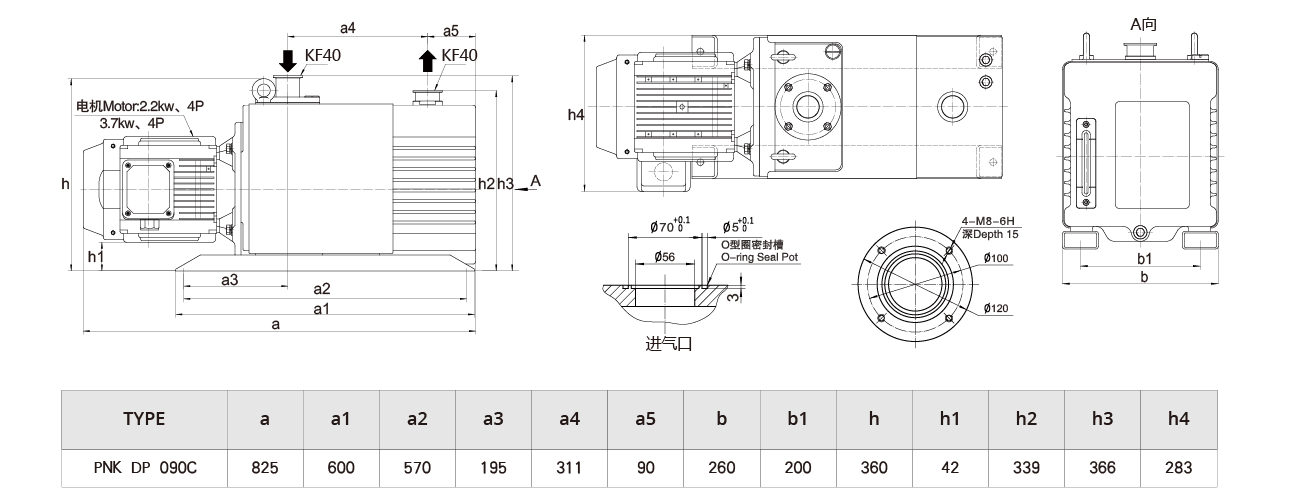

Mounting dimensions
Performance curve
Parts
