PNK DP 060C double stage vane vacuum pumps
性能卓越、可靠（kào）的雙級旋片式（shì）真空（kōng）泵（bèng）
Motor power(50Hz): 2.2Kw
Pumping speed (50/60Hz): 60m³/h/72m³/h
Limit vacuum: 5.0×10-3mbar
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK DP-C series double stage rotary vane pump Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK DP 060C |
|---|---|---|---|
| Pumping speed | m3/h | 50 Hz | 60 |
| 60 Hz | 72 | ||
| Limit partial pressure | mbar | 50 Hz | 7.0×10-4 |
| Limit total pressure | mbar | 50 Hz | 5.0×10-3 |
| Open limit total pressure | mbar | 50 Hz | 2.0×10-4 |
| Water vapor permitted tolerance | mbar | 50 Hz | 30 |
| Nomimal size | DN（mm） | 50 Hz | KF40 |
| Voltage | V | 50 Hz | 220-240/380-420 |
| 60 Hz | 220-280/380-460 | ||
| Power | Kw | 50 Hz | 2.2 |
| Current | A | 50 Hz | 9.57/5.40 |
| 60 Hz | 11.5/6.48 | ||
| Speed | r/min | 50 Hz | 1440 |
| 60 Hz | 1700/1720 | ||
| Noise | (ENISO2151) | dB(A) | 70 |
| Oil filling quantity | L | 2.5/4.2 | |
| Weight | kg | 91 |

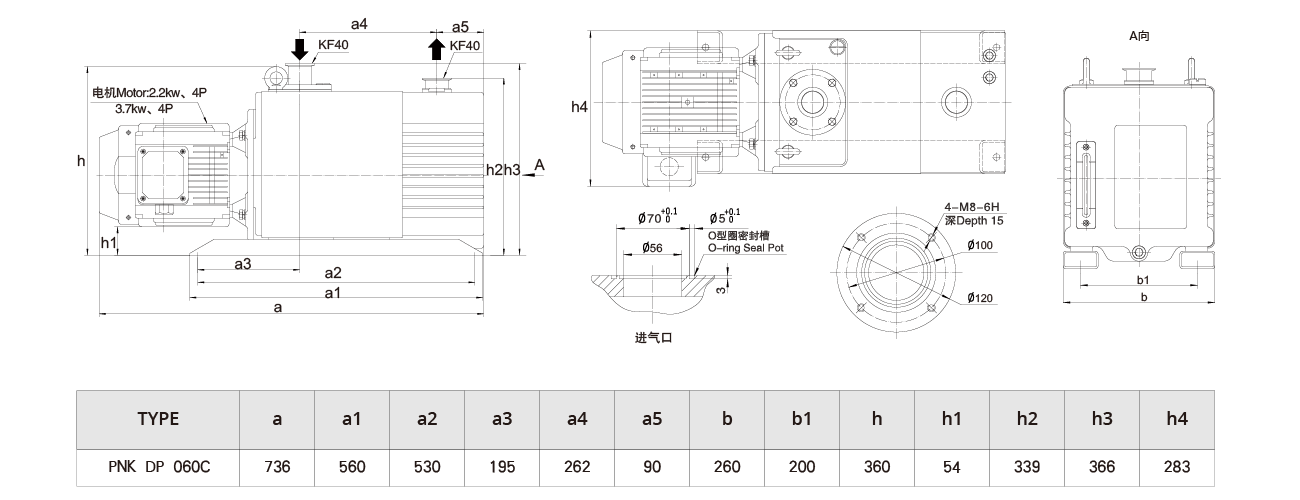

Mounting dimensions
Performance curve
Parts
Download
